Planet Eclipse Geo R5 - Tiger Fade

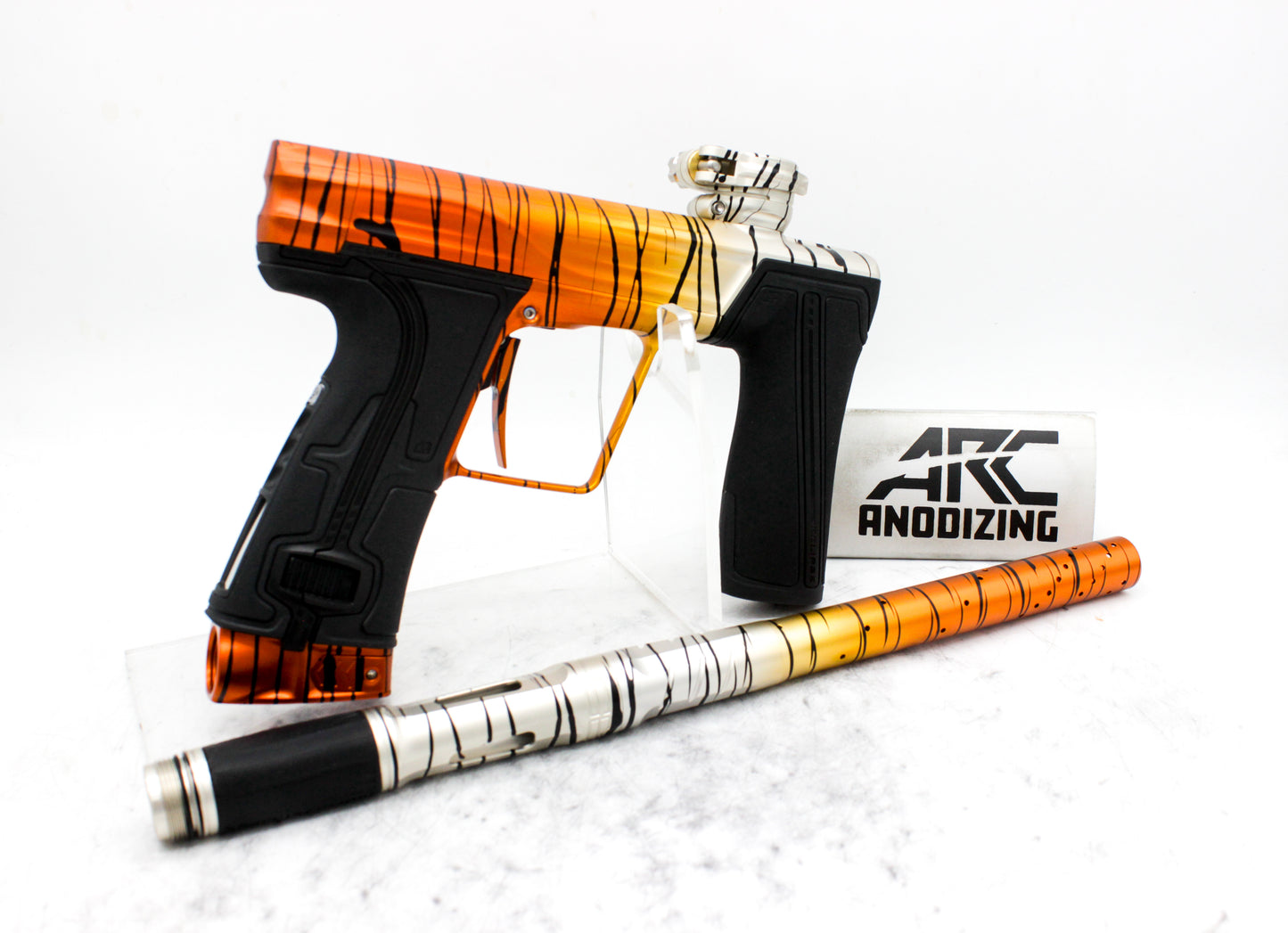

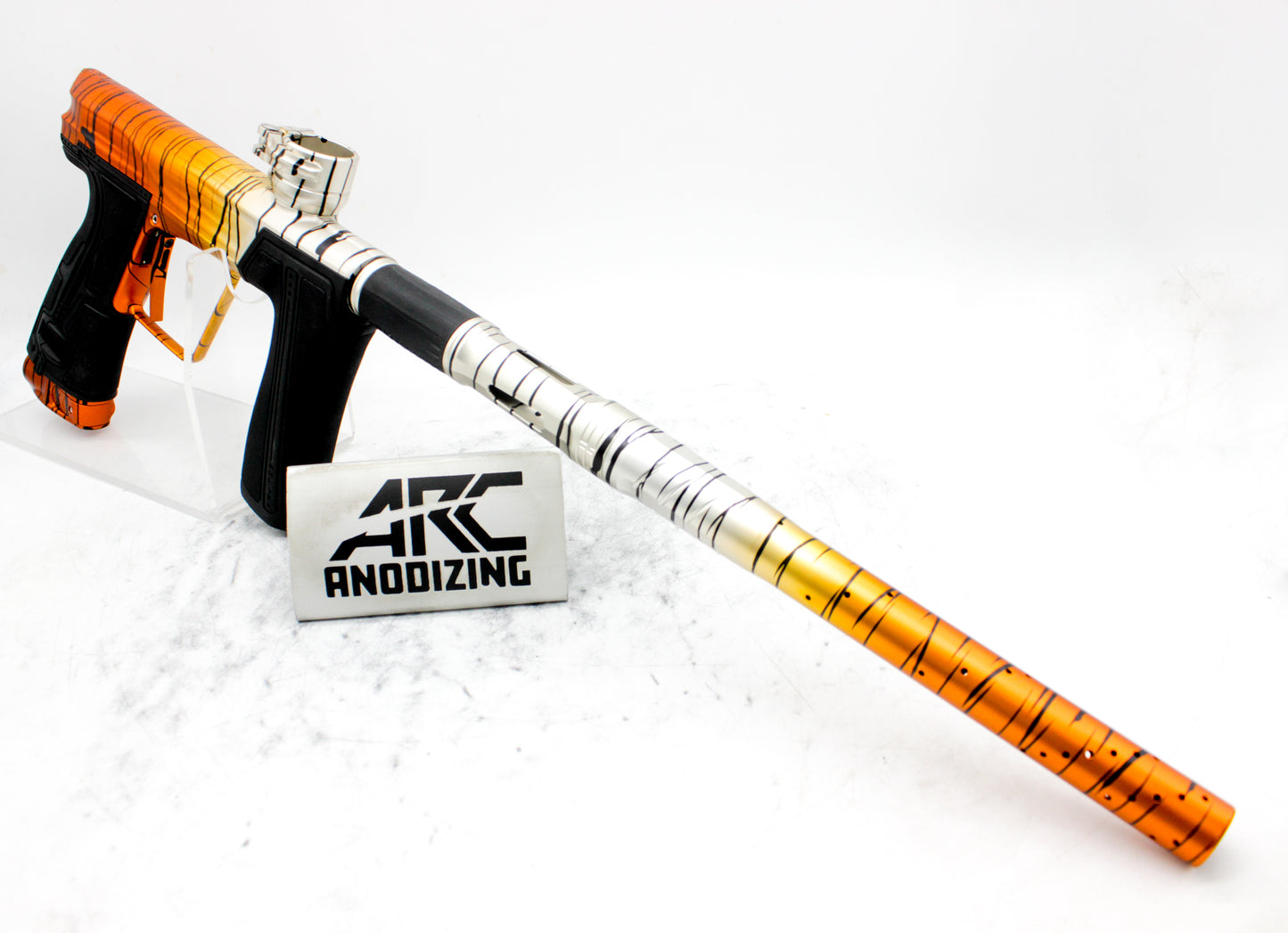

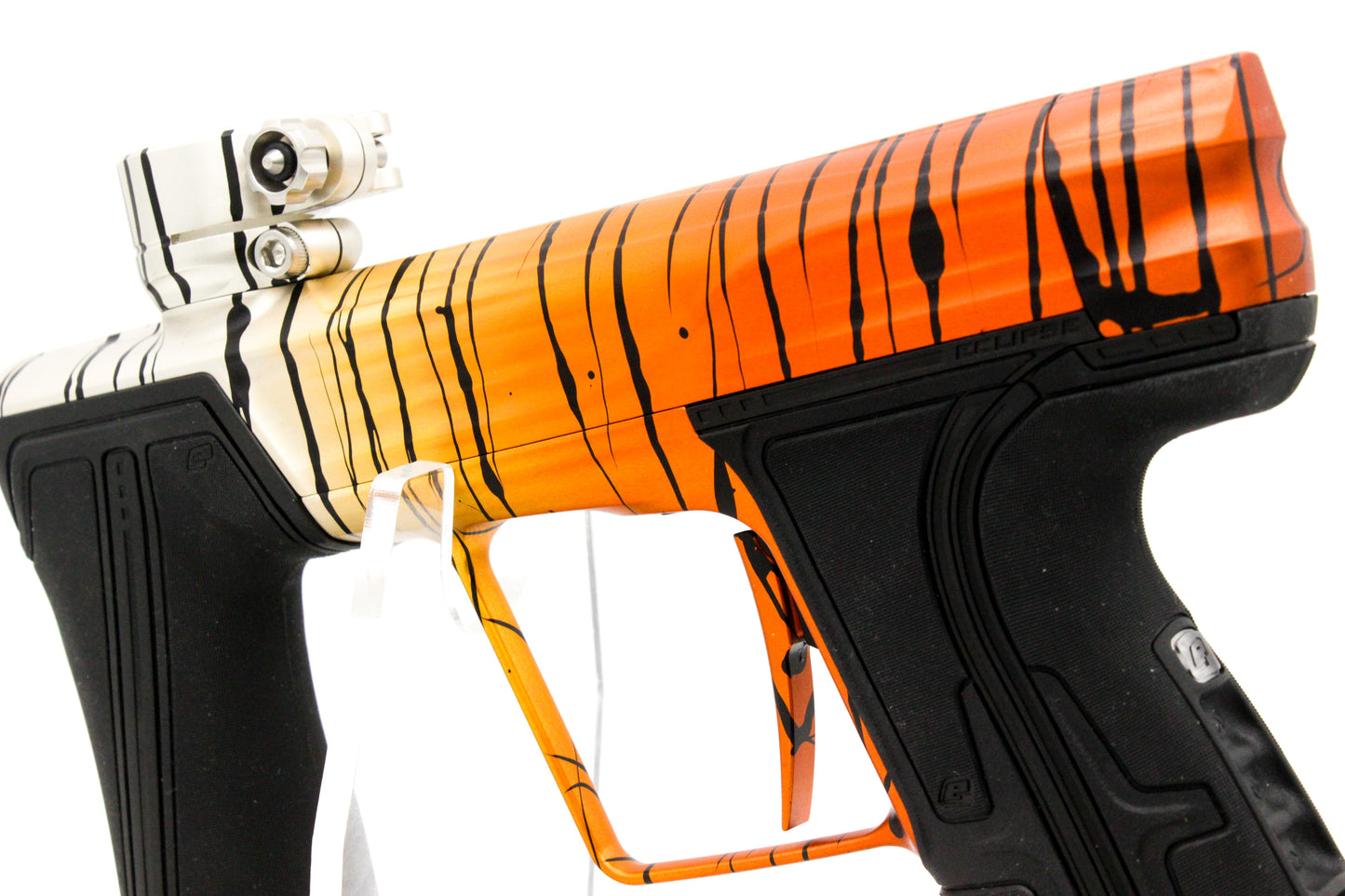

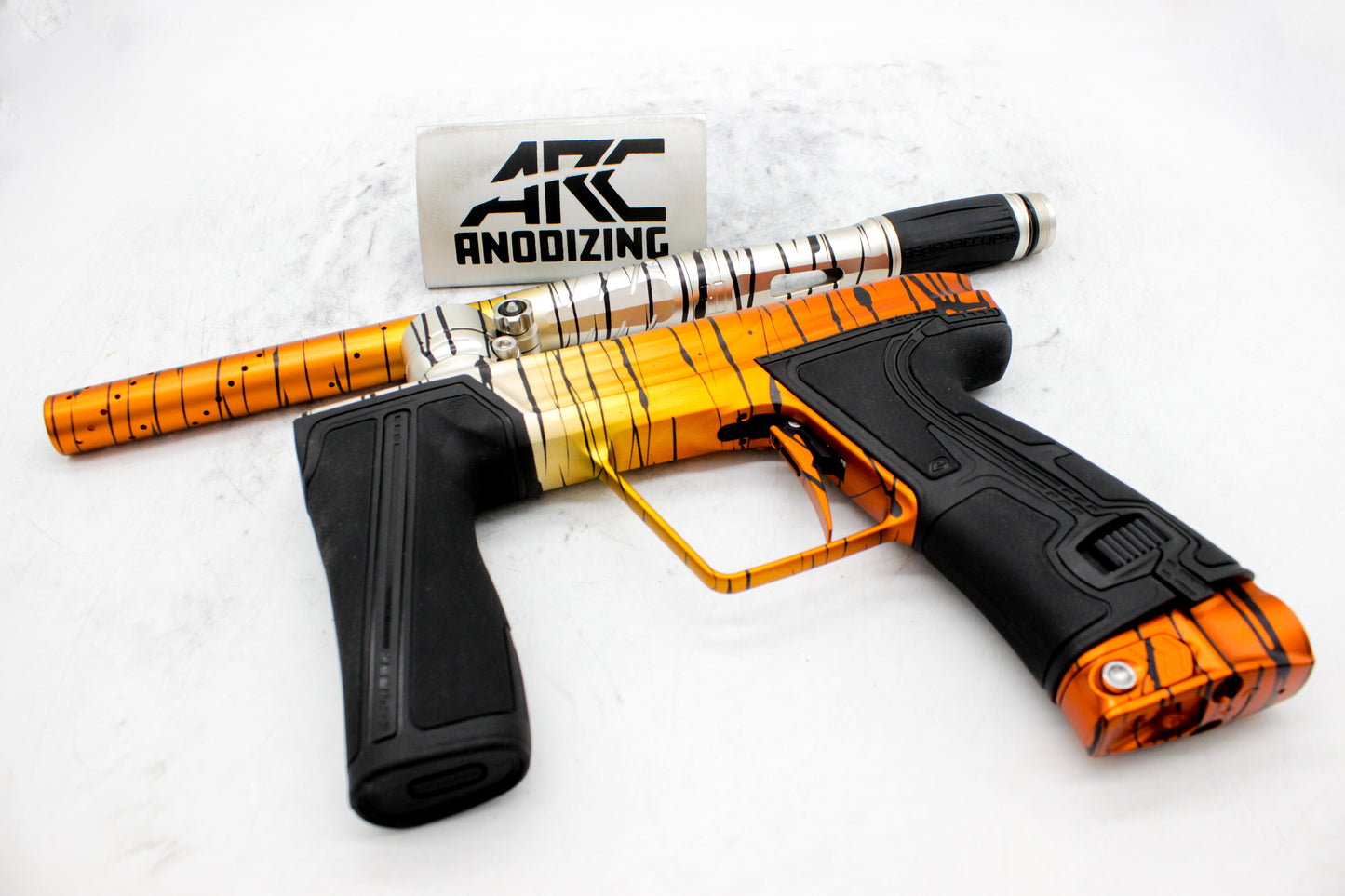

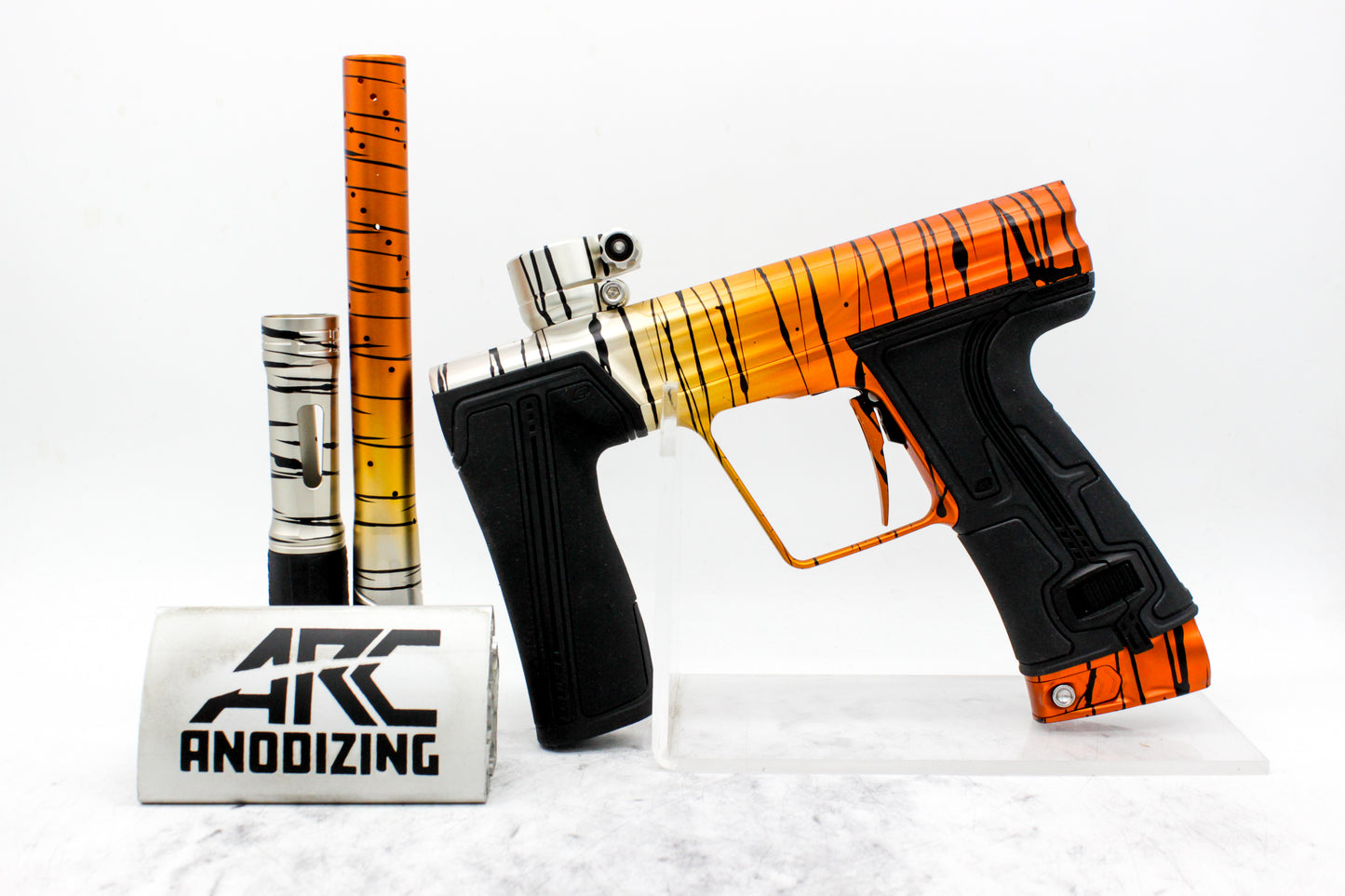

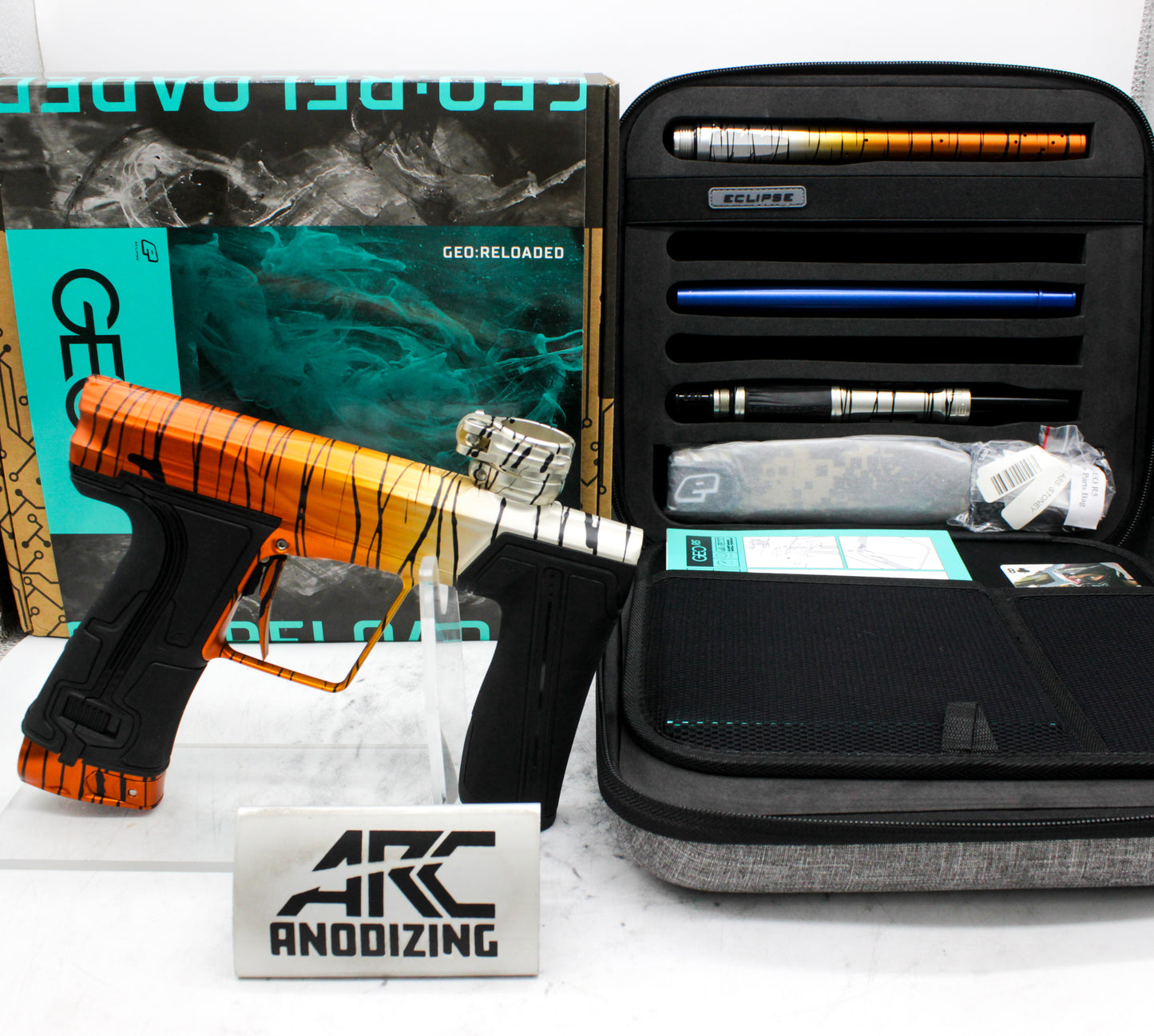

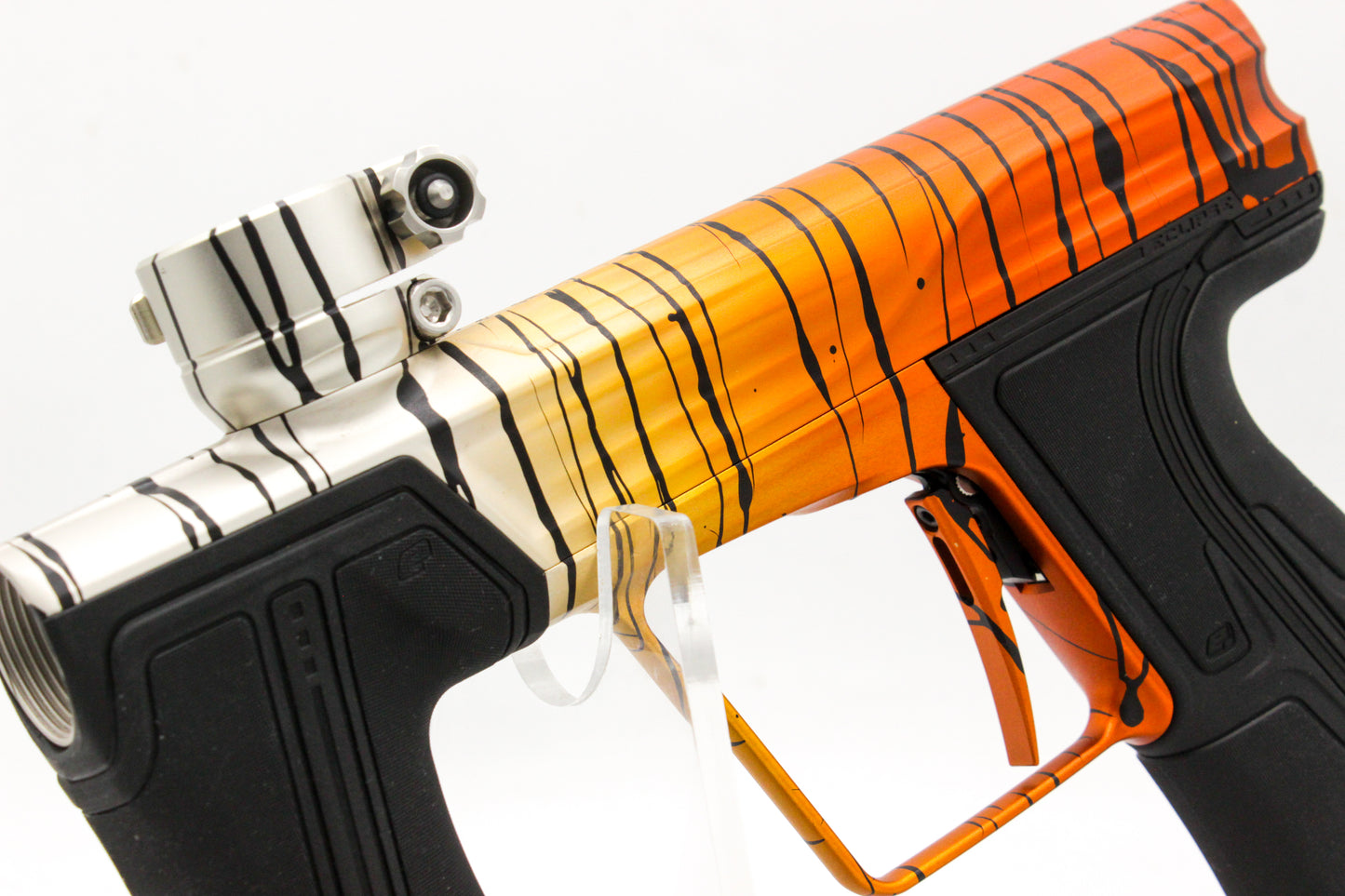

Our custom anodizing on the all new Geo R5. Each marker is brand new, straight from Planet Eclipse to our ano shop for customization. This marker includes everything it would new ie. Case, tools, barrel inserts, manual, spare parts, etc. Each anodizing color way we do is hand done and therefore unique.

Planet Eclipse Geo R5 Features:

• GR Drivetrain NEW

• Ergonomic Ground-Up Redesign NEW

• High Flow FT Soft Tip Bolt NEW

• Concealed Toolless Eye and Detent Covers NEW

• OLED Rear Mounted Heads-Up Display NEW

• Adjustable Bolt Acceleration Profile via SFR (Solenoid Flow Restrictor) NEW

• 5-Point Adjustable Blade Trigger w/Rake Control NEW

• S63 Pro Barrel - Total Length 14.5" NEW

• S63 PWR Inserts 0.685" and 0.689" Inserts NEW

• MME Electronics Package NEW

• Bluetooth® On-Board NEW

• Non-Slip Rubberised and Textured Foregrip NEW

• Wire-less Frame-to-body Interface NEW

• Lightpipe Breech Sensor Technology NEW

• 32-Bit High Performance, Low Power, RISC Microcontroller NEW

• Classic Spool Valve Shot Characteristics

• Quick Release Bolt Mechanism

• Recalibrated Breech Sensing Technology

• 3D Milled Aluminium Body

• Larger Valve Chamber Volume

• Low Operating Pressure – 95-105psi

• Reduced Bolt Force

• Reduced Recoil

• Reduced Sound Signature

• Increased Air Efficiency

• Frame With Extended Reach and revised Grip Geometry

• Deftek Breech System (DBS)

• Onboard Spare Detents

• Hoseless Air Transfer System

• Low Profile POPS Assembly

• Two-Piece Toolless Wrap-Around Interlocking Grips

• Push-Button Console And Magnifying Display Lens

• Low Profile Feed Neck With Locking Sprocket Wheel

• Lock N' Load Battery Holder

• 2 X AA Battery Operation

• Toolless Battery Replacement

• SL5 Inline Regulator In Grip Frame

• Ultra Low Power SMC Pilot Valve

• User-Serviceable Solenoid Assembly

• Micro USB Programming Port

• E-Portal and E-Portal Lite App Compatible

Planet Eclipse Drivetrain RE: POWERED

The IV core drivetrain became a hallmark of the Geo line, initially developed for the iconic GSL. Its launch marked a significant advancement in spool valve marker technology, being the first to integrate Breech Sensing technology, which elevated spool valve efficiency to that of poppet valve markers.

Breech Sensing technology works by using the pulse of air behind the ball to close off the main valve at a specific valve chamber pressure. This traps tail-end air that would otherwise be wasted, enhancing efficiency without affecting the paintball's velocity. This groundbreaking technology significantly improved paintball marker efficiency.

The Eclipse Geo R5 introduces the GR drivetrain, designed to enhance every aspect of the marker's performance, including efficiency, feel, sound signature, and ease of maintenance. This new drivetrain surpasses the legendary IV core with increased internal volume, low operating pressure, improved valve profiling, and advanced breech sensing technology, resulting in phenomenal shot quality and exceptional efficiency.

Additionally, the Geo R5 features the Solenoid Flow Restriction (SFR) system, allowing users to tune bolt speed and shot profile. The factory-installed high-flow SFR is adjustable for most playing conditions, with an optional low-flow SFR available for very hot environments.

Planet Eclipse Geo RE: IMAGINED

The rebirth of the Geo offers much more than just the new GR core. With a re-engineered solenoid and electronics layout, the Geo R5 presents a unique form and feel. The traditional Geo "bump" between the trigger guard and foregrip is gone, replaced by an ultra-skinny body, frame, and foregrip interface that brings the front hand higher and closer to the barrel axis. The increased space between the trigger guard and foregrip accommodates all playing styles. Visible eye covers have been removed for a cleaner, more streamlined look, with detents and breech sensor light pipes now hidden behind the new foregrip.

The wraparound rear grips house the new solenoid assembly and the latest MME electronics package, featuring an OLED graphical user interface, USB, and Bluetooth module. These allow for parameter adjustments via the app or control of other Bluetooth devices. The body and frame separate easily with no wires, cables, or hosing between them, maintaining the quick and easy separation of current Eclipse markers. The Geo R5 has been redesigned to offer a fresher and more efficient platform for both players and techs.

Planet Eclipse Geo RE: ALIGNED

Completing the Geo R5 performance package is the exceptional S63 Pro 3-piece barrel system, which has revolutionized control and precision in our high-end markers. Featuring Eclipse PWR Inserts, widely adopted by other brands, this 3-piece system exceeds all performance expectations and allows users to customize their barrel setup as needed.

Planet Eclipse Geo RE: LOADED

The Geo R5 is equipped with a wide range of familiar features from our latest high-end markers, bringing it fully up to date and beyond. It includes a rake adjustable trigger, AA battery supply, ultra-small POPS assembly, low-rise feedtube, and the versatile Eclipse S63 Pro 3-piece barrel system with Eclipse PWR Inserts. This combination delivers exceptional performance, precision, quality, stability, and enviable reliability.
